ECC7 Elliptic Curve Processor

General Description

	Elliptic Curve Cryptography (ECC) is a public-key cryptographic technology that uses the mathematics of so called “elliptic curves” and it is a part of the “Suite B” of cryptographic algorithms approved by the NSA.
	The design is fully synchronous and requires only minimal CPU intervention due to internal microprogramming sequencer.

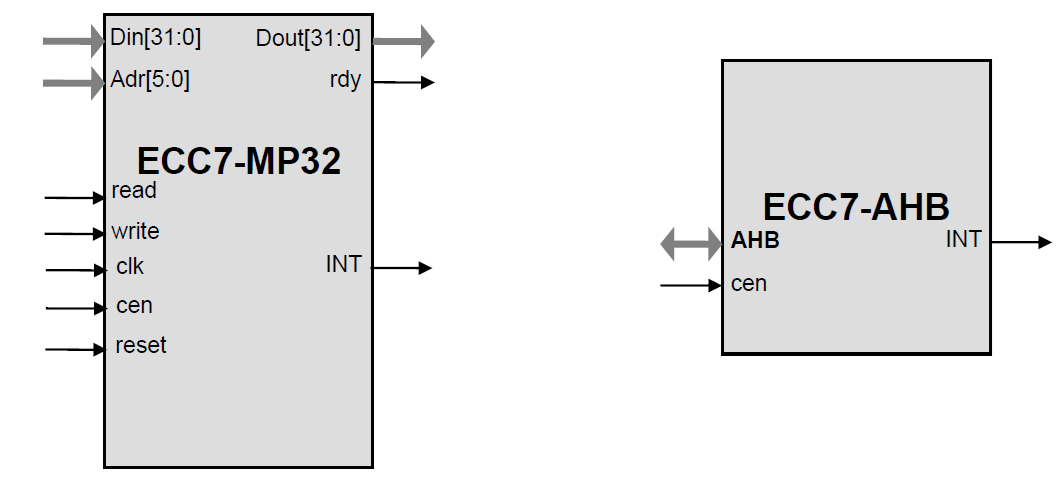

Symbol

Key Features

	ECC7 implementation is unencumbered by any patents
	Support for NIST and NIST-like curves. For generic curves, see ECC8 family. Each core in the family is specialized for a single NIST curve (e.g., ECC7 P256 for P-256) or switchable between few curves.
	High throughput for long life battery powered applications: more than 1,000 point multiplications per second at 100 MHz clock
	Support for NIST prime curves P-192, P-224, P-256, P-384, or P-521
	Microprocessor-friendly interface. AHB wrapper available.
	Test bench provided
	Deliverables include Verilog test bench and test vectors

Applications

	Secure communications systems
	RFID
	Implantable medical devices
	Digital Rights Management (DRM) for battery powered electronics
	Elliptic Curve Diffie-Hellman (EC-DH) standard ANSI X9.63
	Blockchain processing
	Elliptic Curve Digital Signature Algorithm (EC-DSA) standard ANSI X9.62
	Digital Signature Standard (DSS) FIPS-186
	IEEE P1363
	TLS implementations per RFC 4492
	Cryptographic messaging per RFC 3278
	Windows Digital Right Management
	HDCP 2.x

Function Description

For the ECDSA version, for signing the input parameters (z, d, k) are pushed into the core and there (r,s) result can be read. For signature verification (z, Qx, Qy, r, s) are the input parameters. Here z is the hashed message, d is the private key, k is the nonce, r and s constitute the signature, Qx, Qy constitute the public key. A wrapper integrating multiple ECC7 cores with the hash cores and random number generators is available.

The curve and digital signature selections are fixed for the particular version of the core, for example the ECC7 P256-ECDSA-V core works with the NIST binary curve P-256 and implements the signature verification for the ECDSA algorithm.

The core implements either a point multiplication operation and the point verification operations, or (optionally) a complete digital signature operation (signing or signature verification). For the point multiplication version, the operands for the multiplication (k, Px, Py) are pushed into the core before the start of operation. Once the operation is completed, the result, Qx, Qy can be read from the core. For the ECDSA version, for signing the input parameters (z, d, k) are pushed into the core and there (r,s) result can be read. For signature verification (z, Qx, Qy, r, s) are the input parameters. Here z is the hashed message, d is the private key, k is the nonce, r and s constitute the signature, Qx, Qy constitute the public key. A wrapper integrating multiple ECC7 cores with the hash cores and random number generators is available. The curve and digital signature selections are fixed for the particular version of the core, for example the ECC7 P256-ECDSA-V core works with the NIST binary curve P-256 and implements the signature verification for the ECDSA algorithm.

Pin Description

Name	Type	Description
Adr[5:0]	Input	Address
Din[31:0]	Input	Write data
Dout[31:0]	Output	Read Data
read	Input	When HIGH, read operation
write	Input	When HIGH, write operation
5	5	12,000
rdy	Output	Ready bit for microprocessor. Deasserted when data is not available for reading.
INT	Output	HIGH when data processing is completed or an exception occurs
clk	Input	Core clock signal
reset	Input	Asynchronous core reset signal
cen	Input	Synchronous enable signal. When LOW the core ignores all its inputs and all its outputs must be ignored.
Hsel	Input	HSELx
Haddr[12:]	Input	HADDR
Hwrite	Input	HWRITE
Htrans[1:0]	Input	HTRANS
Hsize[2:0]	Input	HSIZE. The core only accepts the size value of 010 (32 bits)
HwData [31:0]	Input	HWDATA
HRESETn	Input	HRESETn
HRESETn	Input	HRESETn
clk	Input	HCLK
HreadyIn	Input	HREADY input signal
HreadyOut	Output	HREADY output signal
Hresp [1:0]	Output	HRESP. The core does not use the 10 (RETRY) and 11 (SPLIT) responses
HrData[31:0]	Output	HRDATA

Export Permits

US Bureau of Industry and Security has assigned the export control classification number 5E002 to the core. See the IP Cores, Inc. licensing basics page, http://ipcores.com/exportinformation.htm, for links to US government sites and more details.

Deliverables

	Synthesizable Verilog RTL source code
	Test bench (self-checking)
	Test vectors
	Expected results
	Software Development Kit (SDK)
	User Documentation
