LRW1/LRW2/LRW3 LRW-AES Cores

General Description

Implementation of the older drafts standard IEEE P1619 required the NIST standard AES cipher in the LRW mode for encryption (AES-LRW). Note that the new drafts of the P1619 call for a different mode, XTS-AES (see our XTS cores). The LRW1 AES core is tuned for storage applications at the data rates of 3 Gbps and higher. The LRW2 family of cores covers a wide range of area / throughput combinations, allowing the designer to choose the smallest core that satisfies the desired clock/throughput requirements. All LRW cores contain the base AES core AES1 and are available for immediate licensing. LRW3 family is similar to LRW2, but supports 256-bit AES keys and no-penalty key and IV changes.

The design is fully synchronous and available in both source and netlist form.

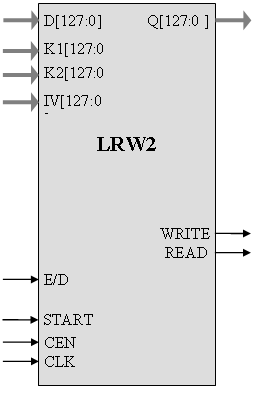

Symbol

Key Features

	Small size: LRW1 starts at 30,000 ASIC gates at throughput of 12.8 bits per clock
	Synthesized for 600+ MHz clock speeds (70+ Gbps throughput for LRW2-128)
	Completely self-contained: does not require external memory
	Supports Liskov-Rivest-Wagner encryption and decryption (LRW-AES a.k.a. AES-LRW)
	Includes LRW-AES encryption, LRW-AES decryption, key expansion and data interface
	No penalty for key and IV changes (back-to-back operation)
	128+128 bit LRW keys supported. 256+128 bit key supported by LRW3.
	Easily parallelizable for higher data rates
	Test bench provided

LRW-AES Applications

Storage encryption

Pin Description

Name	Type	Description
CLK	Input	Core clock signal
CEN	Input	Synchronous enable signal. When LOW the core ignores all its inputs and all its outputs must be ignored.
MODE	Input	Mode. When HIGH, write (LRW-AES encryption), when LOW, read (LRW-AES decryption)
START	Input	HIGH starting input data processing
READ	Output	Read request for the input data byte
DATA_VALID	Input	HIGH when valid data byte present on the input
WRITE	output	Write to the output interface
OUT_READY	Input	HIGH when output interface is ready to accept data byte
D[127:0]	Input	Input Data (plain or cipher text, other data bus widths are also available)
K1[255:0]	Intput	AES key (128-bit key option is also available)
K2[127:0]	Input	Tweak key (K2)
IV[127:0]	Input	Logical position (I)
Q[127:0]	Output	Output plain or cipher text

Function Description

The Advanced Encryption Standard (AES) algorithm is a new NIST data encryption standard as defined in the http://csrc.nist.gov/publications/fips/fips197/fips-197.pdf

LRW implementation fully supports the AES algorithm for 128+128 and 256+128 bit keys LRW-AES mode as required by the P1619 IEEE draft standard.

The cores are designed for flow-through operation, with selectable width of input and output interfaces. LRW cores support both encryption and decryption modes.

Implementation Results

Area Utilization and Performance

Representative area/resources figures are shown below.

Core	Technology	Area / Resources	Max Frequency	Throughput
LRW1	TSMC 0.13 µ LV	29,959 gates	100 MHz	1.28 Gbps
LRW1	TSMC 0.09 µ LV	60,165 gates	600 MHz	7.68 Gbps
LRW2-25.6	TSMC 0.09 µ LV	44,405 gates	100 MHz	2.56 Gbps
LRW2-64	TSMC 0.09 µ LV	84,269 gates	100 MHz	6.4 Gbps
LRW2-64	TSMC 0.09 µ LV	196,914 gates	515 MHz	33 Gbps
LRW2-128	TSMC 0.09 µ LV	150,817 gates	100 MHz	12.8 Gbps
LRW2-128	TSMC 0.09 µ LV	311,252 gates	305 MHz	39 Gbps
LRW2-128	TSMC 0.09 µ LV	399,208 gates	550 MHz	70.4 Gbps

Multiple LRW cores can be easily paralleled for throughputs of 100 Gbps and higher.

Export Permits

US Bureau of Industry and Security has assigned the export control classification number 5E002 to our AES core. The core is eligible for the license exception ENC under section 740.17(A) and (B)(1) of the export administration regulations. See the licensing basics page, for links to US government sites and more details.

Deliverables

HDL Source Licenses

	Synthesizable Verilog RTL source code
	Test bench (self-checking)
	LRW-AES vectors for testbenches
	Expected results
	User Documentation

Netlist Licenses

	Post-synthesis EDIF
	Testbench (self-checking)
	LRW-AES vectors for testbenches
	Expected results
	Place & Route script
