CEC1-66/2112 Codec for Cyclic Code (2112,2080)


General Description

The CEC1-66/2112 core implements the codec for the Forward Error Correction (FEC) cyclic code (2112,2080) used in the IEEE 802.3ap (10G Backplane Ethernet) standard and IEEE 802.3ba (40 Gbps/100 Gbps operation). The encoder and decoder functions are completely independent and packaged as two sub-cores, CEC1-66/2112E and CEC1-66/2112D respectively. Decoder corrects a single burst error of upto 11 bits.


Key Features

Small Size
Implements FEC Sublayer for 10GBASE-R (section 74 of the IEEE 802.3 standard)
10G/40G/100G Ethernet MAC-friendly interface
Practically self-contained: requires only memory for one 2112-bit block in the decoder.
Flow-through design; low latency

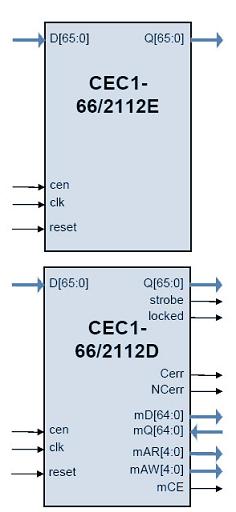

Symbol
Applications
10/40/100G Ethernet MAC











Pin Description

CLK Input   Core clock signal
EN Input   Synchronous enable signal. When LOW the core ignores all its   inputs and all its outputs must be ignored.
reset Input    Asynchronous reset
D[65:0] Input   Input data
Q[65:0] Output   Output data
mD[64:0] Output   Output data to Memory
mQ[64:0] Input    Input data to Memory
mAR[4:0] Output   Memory Read Address
mAW[4:0] Output   Memory Write Address
mCE Output   Memory Clock Enable (duplicates the cen input)
locked Output    Core has locked to the input data
strobe Output   Cerr and NCerr outputs are valid
Cerr Output   Error has been corrected
Ncerr Output   Uncorrectable errors detected

Function Description

The CEC1-66/2112E core implements the FEC encoder per section 74 of the IEEE 802.3 standard.



Deliverables

HDL Source Licenses

Synthesizable Verilog RTL source code (VHDL option available)
Verilog Testbench
Vectors for Testbench
Expected results
User Documentation


Contact Information
IP Cores, Inc.
3731 Middlefield Rd.
Palo Alto, CA 94303, USA
Phone: +1 (650) 815-7996
E-mail: [email protected]
www.ipcores.com
