GLM1/GLM2/GLM3
Combo P1619 / 802.1ae (MACSec)
GCM-AES/LRW-AES Cores



General Description

Key Features


LAN security standard IEEE 802.1ae (MACSec) uses AES cipher in the GCM mode, while the disk/tape encryption standard IEEE P1619 uses the LRW mode. Since AES-GCM and AES-LRW share some of their basic components, a combo GCM-AES/LRW-AES core is not much larger than a dedicated core for either of the modes.

The GLM1 core is tuned for mid-performance P1619 and 802.1ae applications at the data rates of 3-5 Gbps and higher. GLM2 is designed for higher throughput up to 10 Gbps. Both cores use identical external interface, contain the base AES core AES1 and are available for immediate licensing.

GLM3 core is similar to GLM2, but its interface supports variable message length in the GCM mode.

The design is fully synchronous and available in both source and netlist form.

Small size:
  from 31,000 ASIC gates for GLM1
  from 58,000 ASIC gates for GLM2

400 MHz frequency in 130 nm process
  GLM1 throughput is 12.8 bits per clock
  GLM2 throughput is 25.6 bits per clock

Easily parallelizable to achieve higher throughputs

Completely self-contained: does not require external memory. Includes encryption, decryption, key expansion and data interface

Support for Galois Counter Mode Encryption and authentication (GCM-AES) and Liskov, Rivest, and Wagner Mode (LRW-AES)

Automatic generation of key context from key data and frame header

Flow-through design

Test bench provided

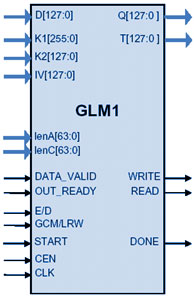

Symbol

Applications


  • IEEE 802.1ae
         LAN switches, routers, NICs
  • IEEE P1619, P1619.1
         Hard drive and tape encryption, SAN, NAS
  •

    Pin Description


    Name
    Type
    Description
    CLK
    Input
    Core clock signal
    CEN
    Input
    Synchronous enable signal. When LOW the core ignores all its inputs and all its outputs must be ignored.
    GCM/LRW
    Input
    When HIGH, AES mode is GCM, when LOW mode is LRW
    E/D
    Input
    When HIGH, core is encrypting, when LOW core is decrypting
    START
    Input
    HIGH level starts the input data processing
    READ
    Output
    Read request for the input data byte
    DATA_VALID
    Input
    HIGH when valid data word present on the input
    WRITE
    Output
    Write signal for the output interface
    OUT_READY Input HIGH when output interface is ready to accept data word
    Q[127:0] Input Input Data (other data bus widths are also available)
    • For GCM, additional authenticated data (AAD, A), followed by the plain or cipher text
    • For LRW, plain or cipher text
    K1[255:0] Input AES key (128-bit key option is also available)
    K2[127:0] Input (LRW mode only) Tweak key
    IV[127:0] Input Initial counter value for GCM mode (Y0, IV || 0311), logical position for LRW mode
    lenA[63:0] Input (GCM mode only) Length of additional authenticated data in bits
    lenC[63:0] Input (GCM mode only) Length of plain or cipher text in bits
    lenC[63:0] Output plain or cipher text
    T[127:0] Output (GCM mode only) Computed MAC (tag, T)
    DONE Output HIGH when data processing is completed


    Function Description



    The GLM1 and GLM2 implementation fully supports the AES algorithm for 128 and 256 bit keys in Galois Counter Mode (AES-GCM) as required by the 802.1ae IEEE standard and in Liskov, Rivest, and Wagner Mode (AES-LRW) as required by the IEEE P1619 standard.

    The core is designed for flow-through operation, with input and output interfaces of flexible width. GCM additional authentication data precede the plaintext in the flow of data. All GLM cores support both encryption and decryption modes for LRW-AES and GCM-AES.




    Synthesis Results



    Device Area Utilization and Performance


    Representative area/resources figures are shown below.

    Core
    Technology
    Area / Resources
    Max Frequency
    Throughput
    GLM1
    TSMC 0.13 µ LV
    31,000 gates
    250 MHz
    3.2 Gbps
    GLM1
    TSMC 0.13 µ LVOD
    52,000 gates
    400 MHz
    5 Gbps
    GLM1
    TSMC 0.13 µ LV
    56,000 gates
    400 MHz
    5 Gbps
    GLM2 TSMC 0.13 µ LV
    58,000 gates
    200 MHz
    5 Gbps
    GLM2 TSMC 0.13 µ LV
    100,000 gates
    400 MHz
    10 Gbps

    Few GLM1 or GLM2 cores can be easily paralleled to achieve even higher throughput.


    Export Permits


    US Bureau of Industry and Security has assigned the export control classification number 5E002 to our AES core. The core is eligible for the license exception ENC under section 740.17(A) and (B)(1) of the export administration regulations. See the licensing basics page for links to US government sites and more details.


    Deliverables



    HDL Source Licenses

    Netlist Licenses


    • Synthesizable Verilog RTL source code
    • Test bench (self-checking)
    • Vectors for test bench
    • Expected results
    • User Documentation
    • Post-synthesis EDIF
    • Test bench (self-checking)
    • Vectors for test bench
    • Expected results
    • Place & Route script
